| Reference 1: | Reference 2: | Reference 3: | |||

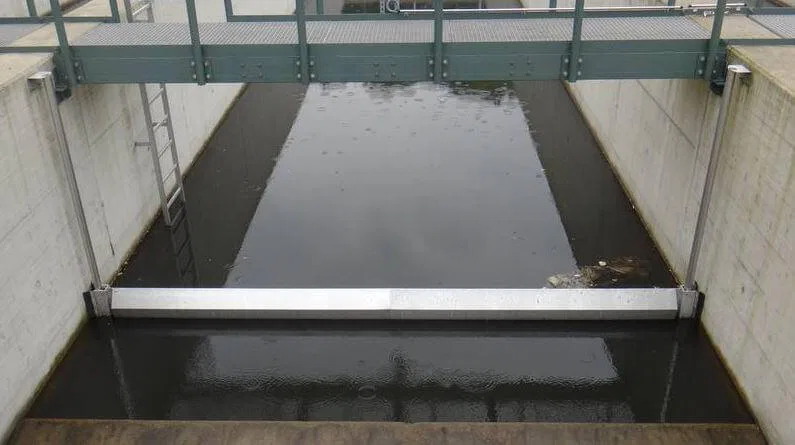

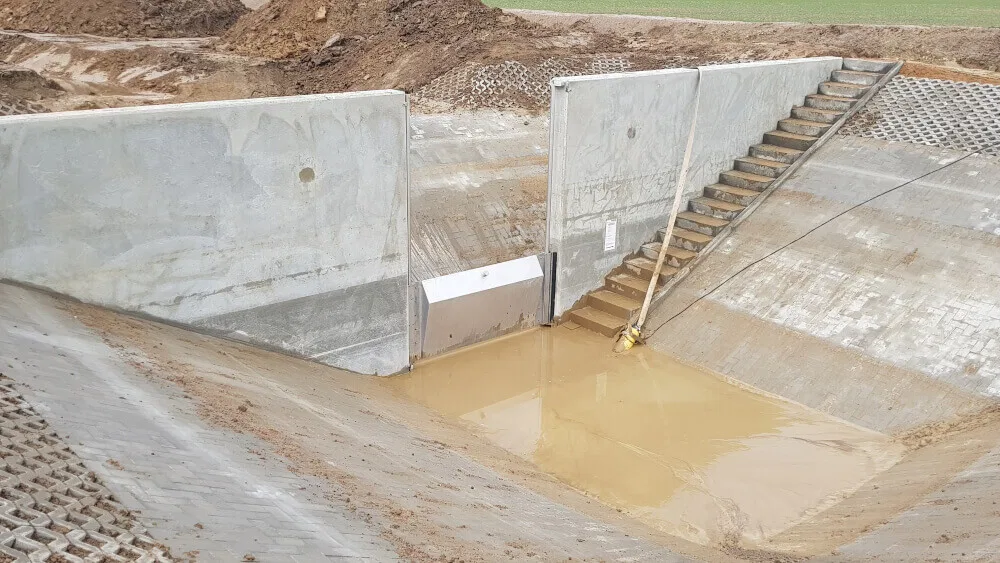

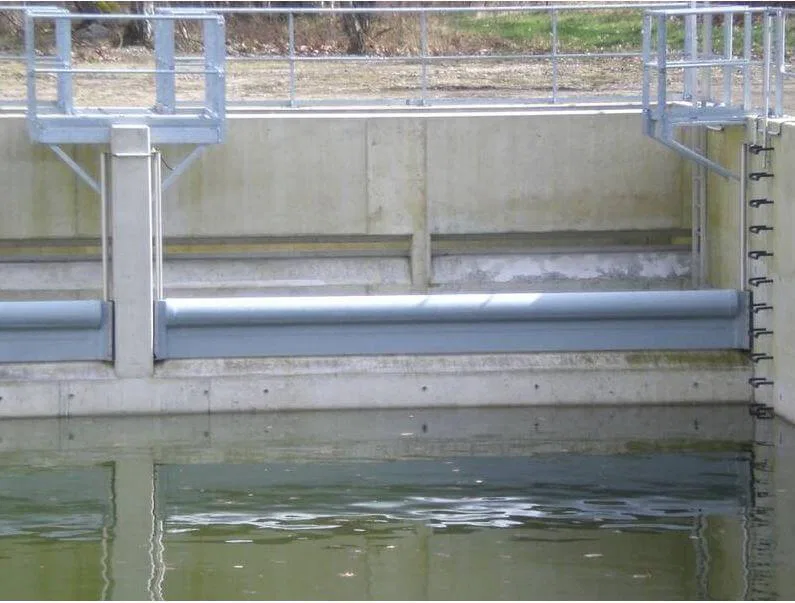

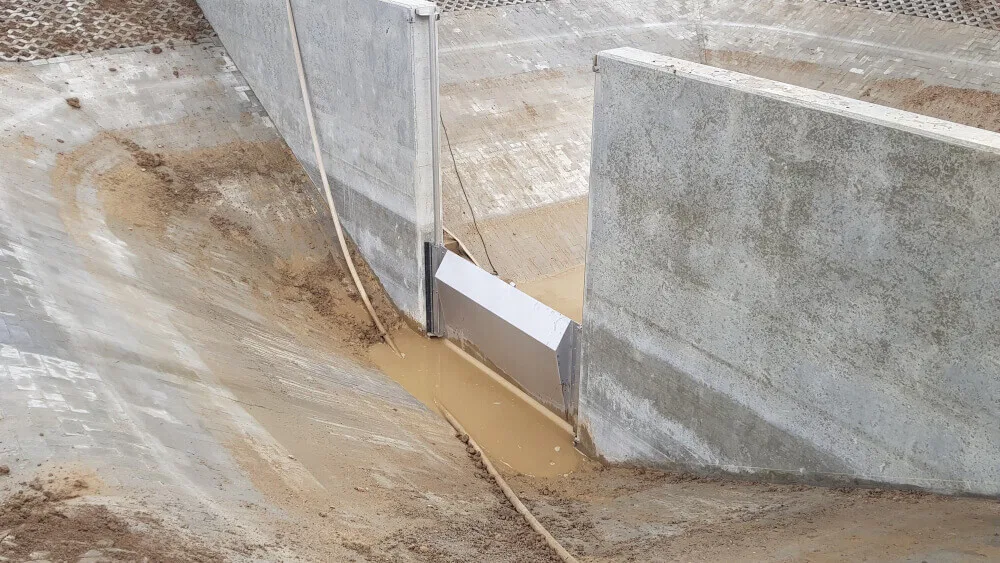

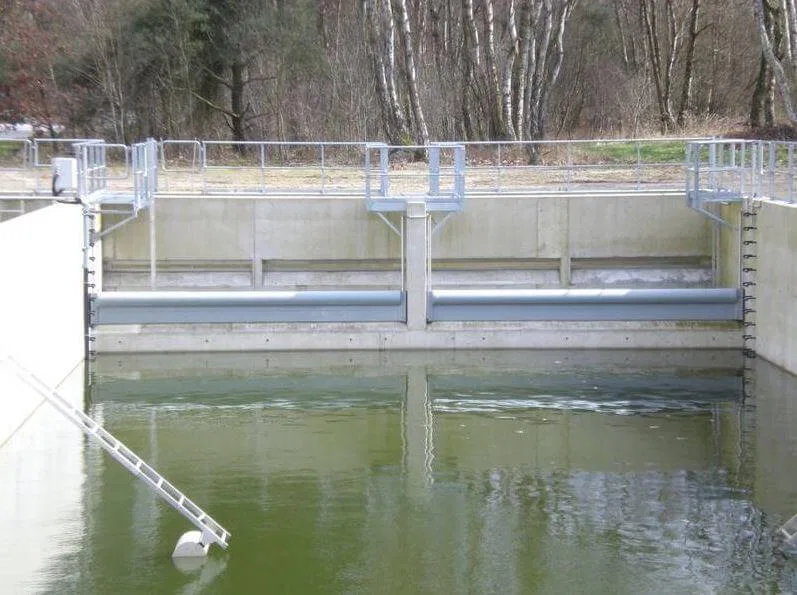

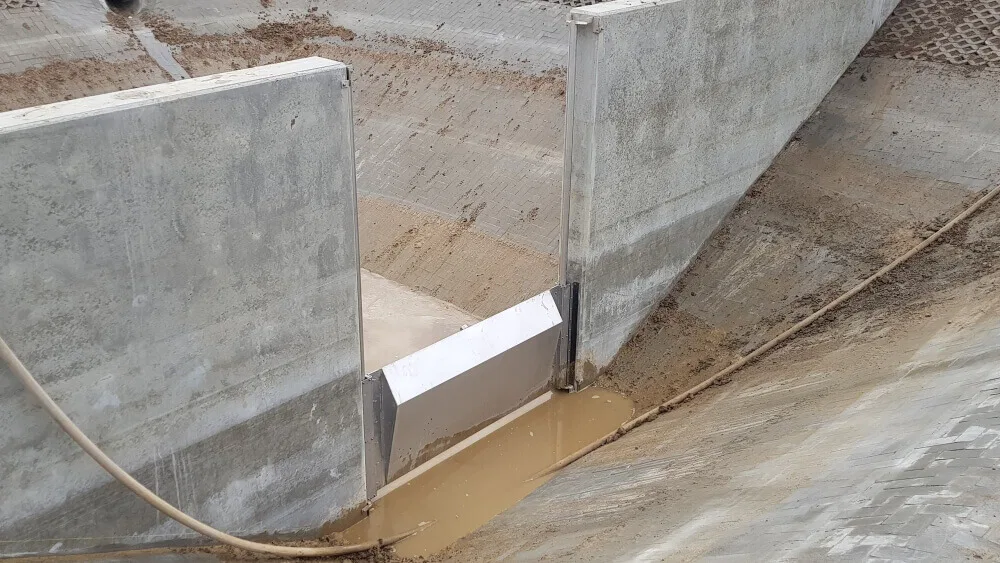

| Project name: | Wermelskirchen | Project name: | Salzgitter | Project name: | Breisach |
| Project data: | Year of construction 2013 L = 5000 mm H = 500 mm Number 7 piece | Project data: | Year of construction 2021 L = 2500 mm H = 1000 mm Number 1 piece | Project data: | Year of construction 2017 L = 5500 mm H = 500 mm Number 1 piece |
| Scope of services: | Manufacture, delivery and assembly | Scope of services: | Manufacture, delivery and assembly | Scope of services: | Manufacture, delivery and assembly |
Specification Text Aqua-Skim V
Sample specification for planners and specifiers. Ready to be adopted into your bill of quantities.

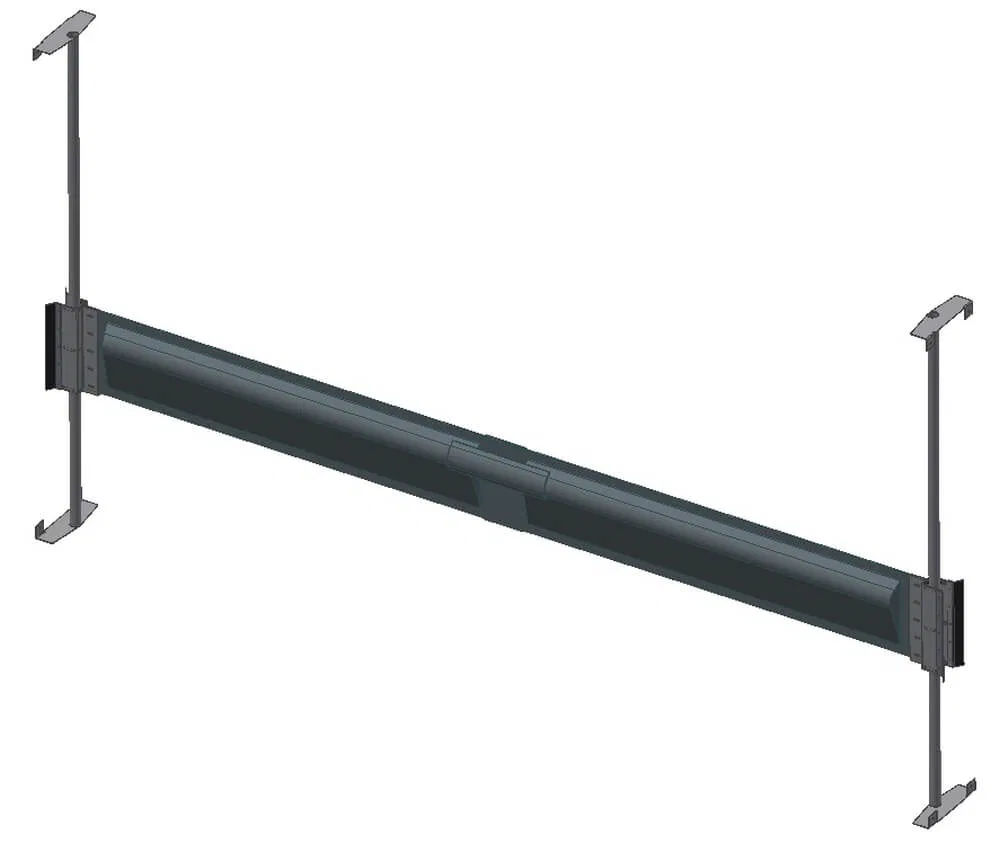

Aqua-Skim V – Vertically Floating Baffle
Proof of delivery:
SGS Aqua Technologies GmbH
Burmeckestraße 4–6, D-59955 Winterberg
Tel.: +49 2983 974268-0
Fax: +49 2983 974268-68
Consisting of

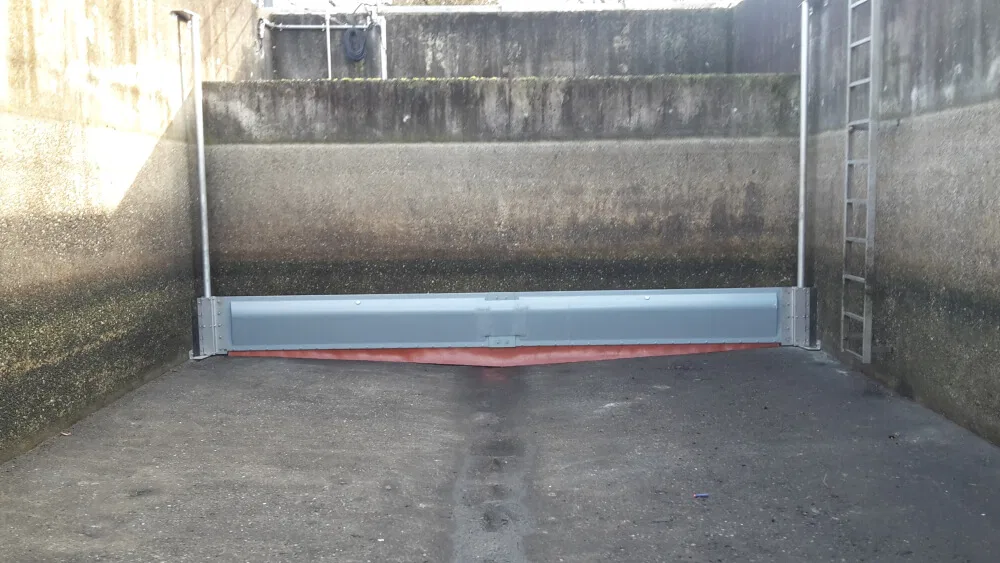

- Baffle body designed as a floating body with side lip seals. The geometry of the floating body is designed in such a way that enough buoyancy is generated around the entire construction to carry the whole baffle on a rising water level.
Length: according to clear crest length
Height: according to the regulations of the DWA, designed for an overflow of ______ mm

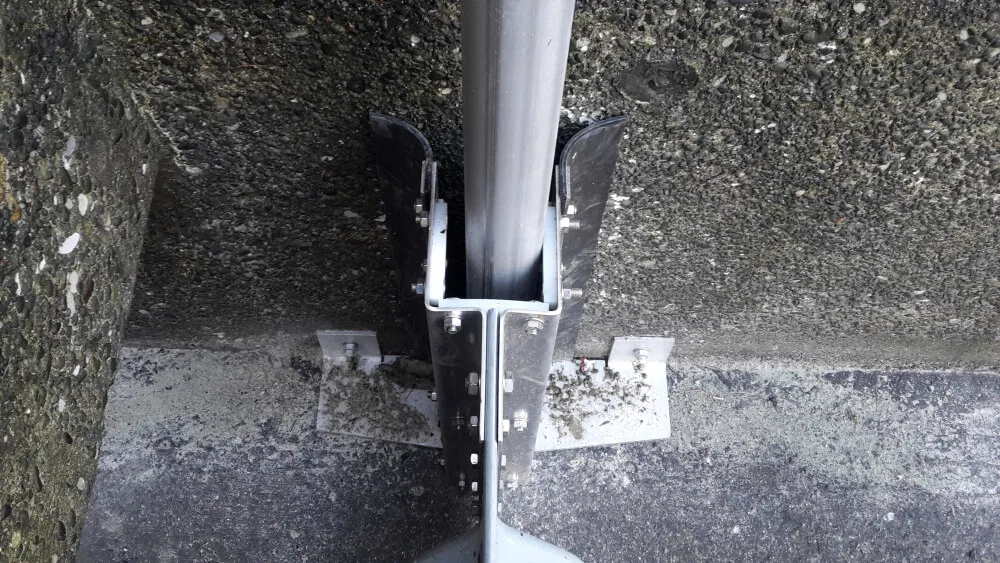

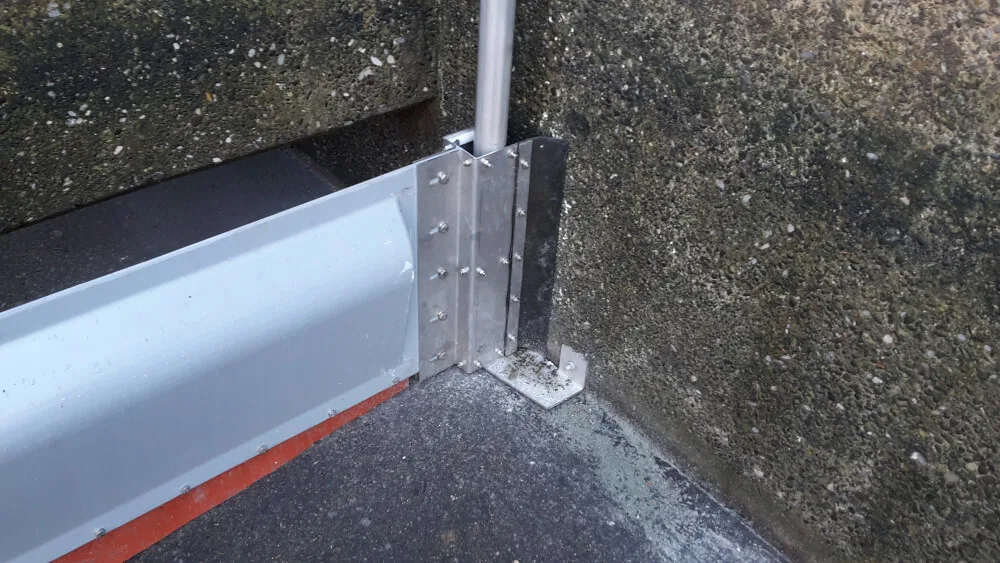

Material: Stainless steel - Stainless steel guide rails to hold the vertical sliding bearing of the baffle body, including stainless steel screws, dowels and required mounting accessories.
Height: ______ mm
Quantity: 2 pieces
Functional requirement
In the rest position, the baffle must lean to the bottom of the tank, so that with increasing water level no floating matter can reach between the baffle and the overflow crest. With rising water level, the baffle must move vertically from the bottom to avoid floating material from getting into the cross-section between baffle and overflow crest, while at the same time releasing the maximum amount of relief water.
Item
| Pos. | Description | Quantity / Unit | Unit price | Total price |
|---|---|---|---|---|
| 01. | Aqua-Skim V floating baffle – supply and installation | 1,000 pc | ____________ | ____________ |
Sample specification text SGS Aqua Technologies GmbH · Version 02.12.2022 · All information without guarantee.
