Advantages of a flushing valve:
- Long flushing lengths up to 150 m
- Powerful flush
- Multi-flushing with additional flushing chamber possible
- Low-maintenance
- Low energy consumption
- Secure locking due to "catch mechanism”
- Lightweight construction with GRP flap body
- Low resistance to the flushing surge
- Cleaning with mixed water possible
- Low noise pollution
- Reliable electrohydraulic locking/unlocking system
- Shutter control
- Remote-controlled
- Fully automated with AquaControl module
Videos
References
Downloads
Videos
Playlist
2 Videos
0:05
1:13

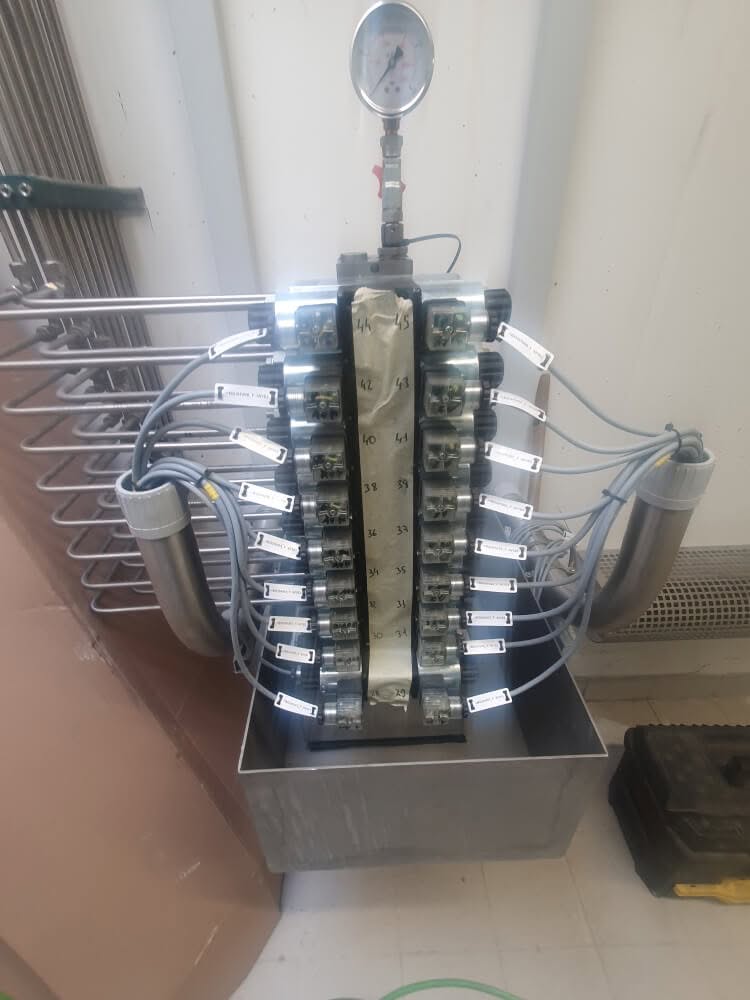

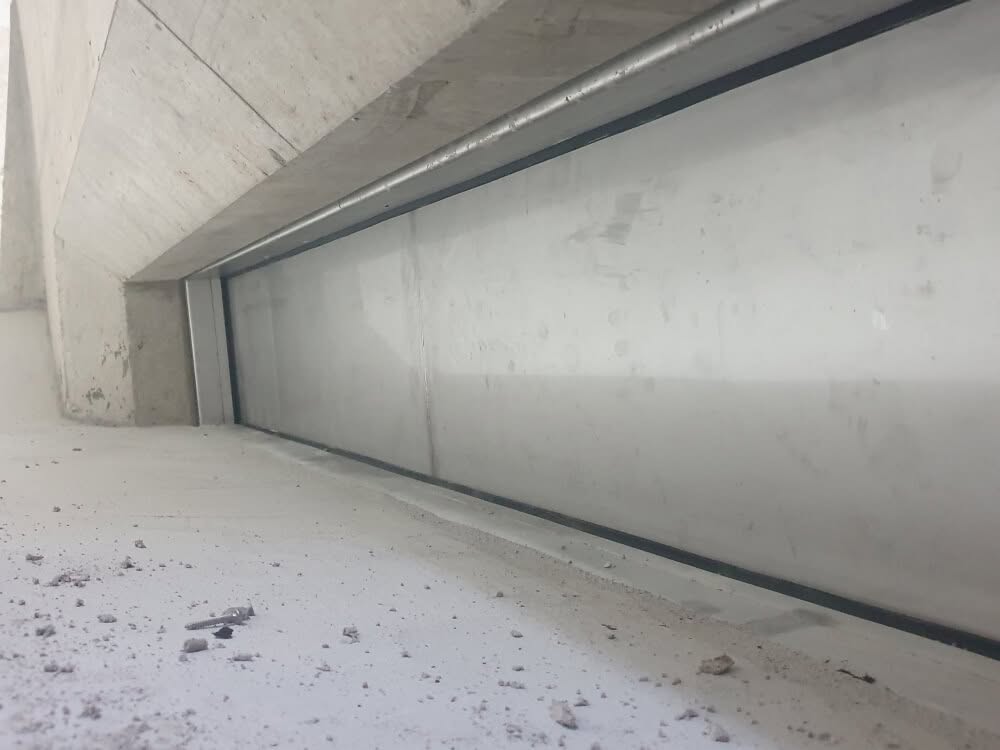

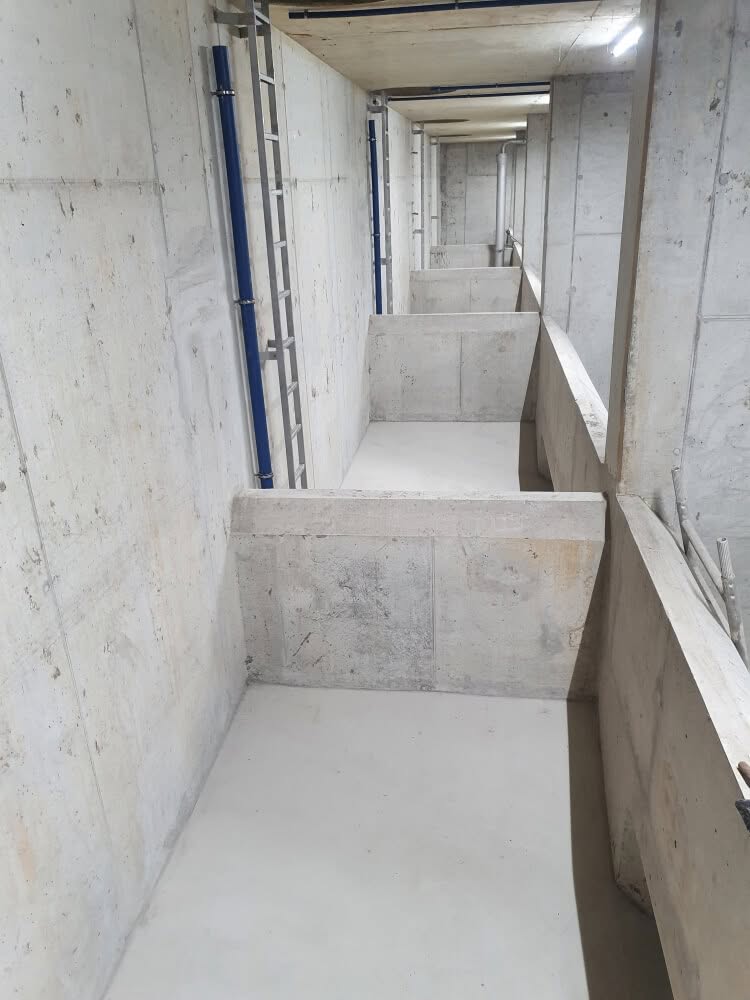

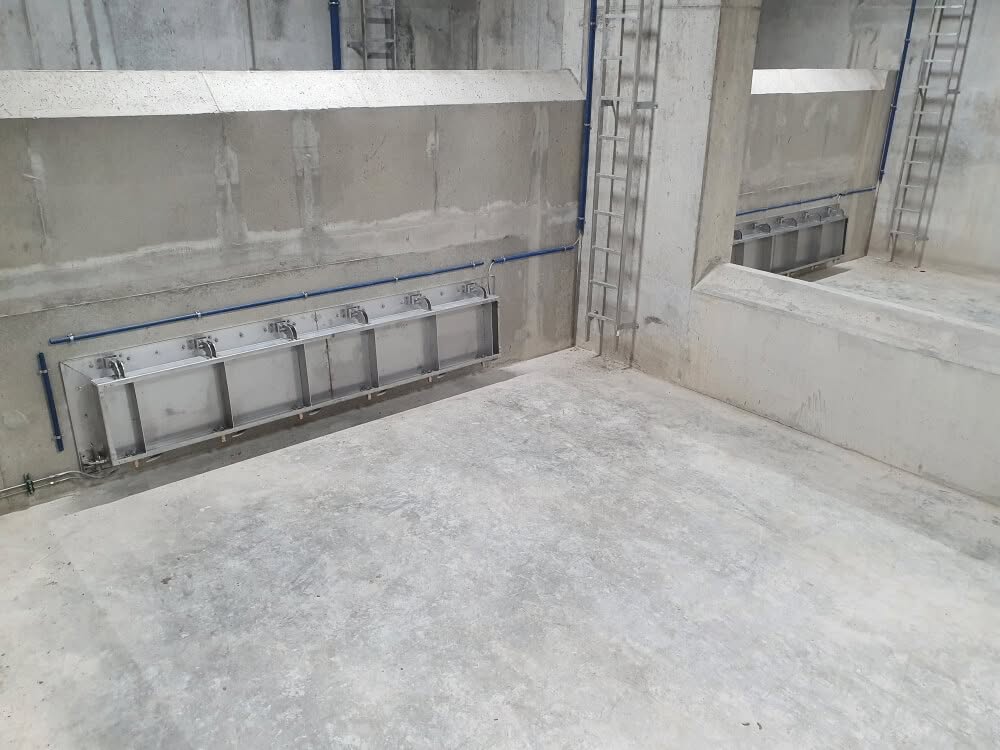

References

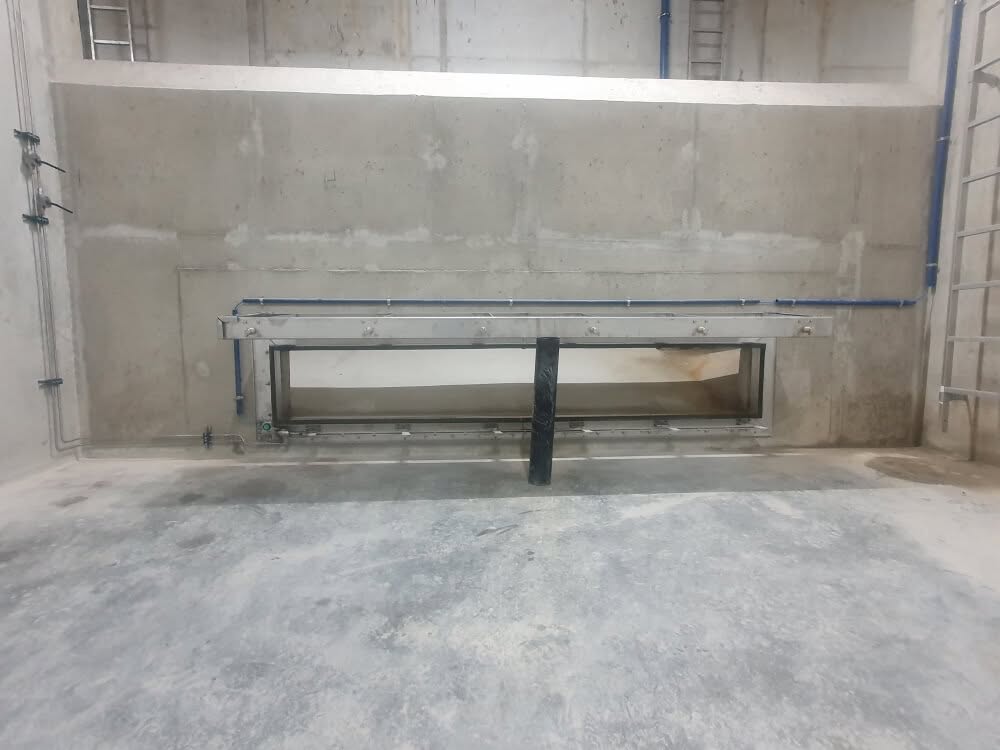

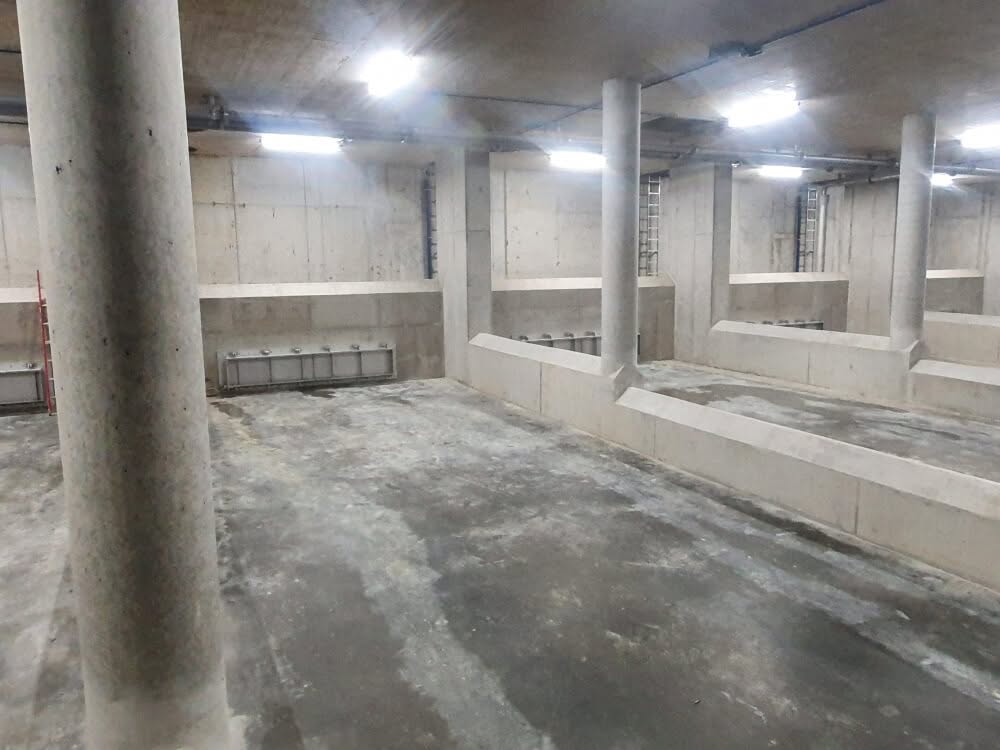

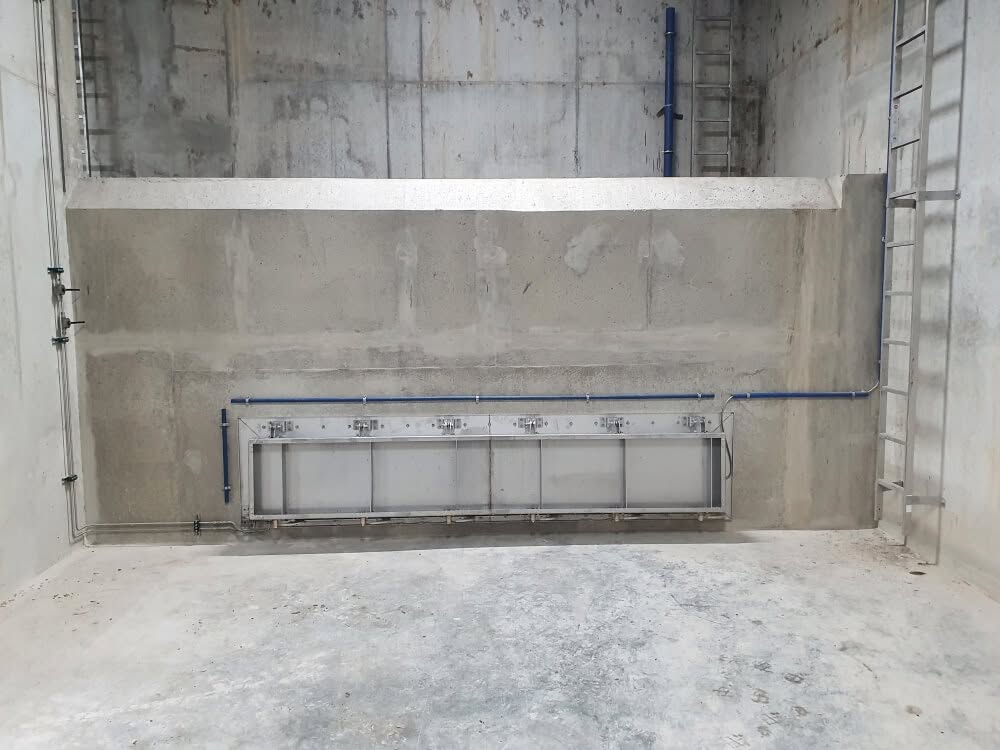

| Reference 1: | Reference 2: | Reference 3: | |||
| Project name: | Nürnberg | Project name: | Hannover | Project name: | Kaufungen |
| Project data: | Year of construction 2022 2800 x 400 mm Anzahl 9 Stück | Project data: | Year of construction 2021 4000 x 400 mm Anzahl 29 Stück | Project data: | Year of construction 2014 2800 x 400 mm Anzahl 4 Stück |
| Scope of services: | Manufacture, delivery and assembly | Scope of services: | Manufacture, delivery and assembly | Scope of services: | Manufacture, delivery and assembly |
Downloads
Specification Text AquaFlush Gate
Sample specification for planners and specifiers. Ready to be adopted into your bill of quantities.
1. Flush Cleaning System AquaFlush Gate
Cleaning system for the removal of contaminants that settle out at the retention tank floor during an inundation event.
Proof of delivery:
SGS Aqua Technologies GmbH
Burmeckestraße 4–6, D-59955 Winterberg
Tel.: +49 2983 974268-0
Fax: +49 2983 974268-68
Consisting of

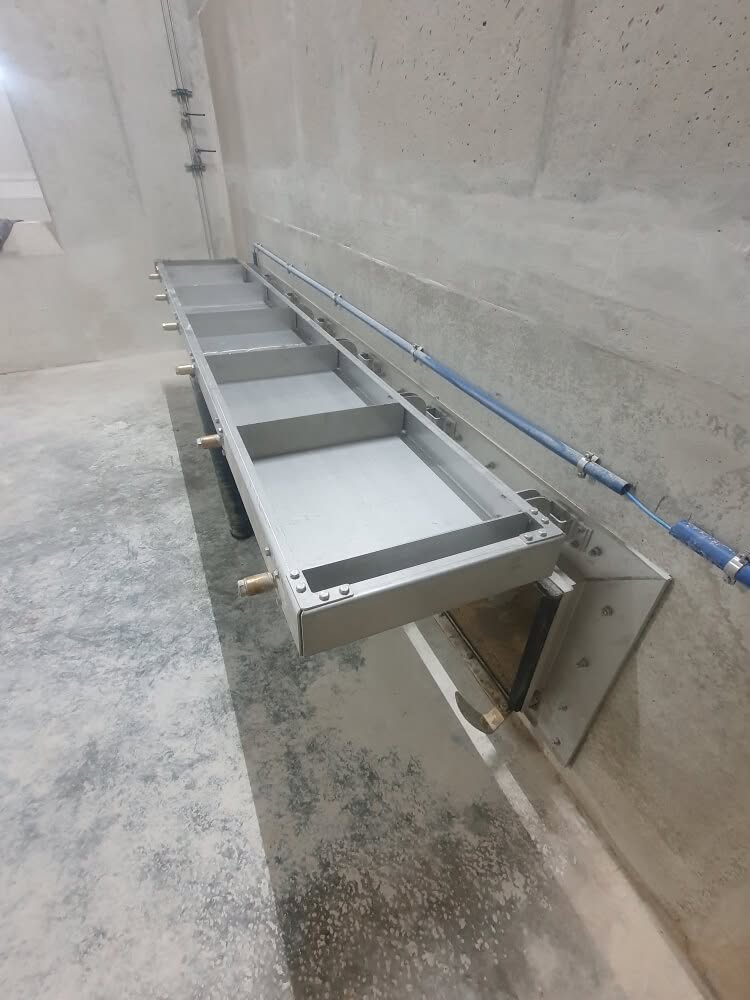

- Circumferential, twice canted frame for tank side dowel installation to the even flush chamber wall; with circumferential gasket for sealing between frame and flush chamber wall; incl. min. 2 hinge receivers for the gate body at the top and lever lock with min. 2 locking points at the bottom.
Dimensions: H × W = ______ × ______ mm
Material: Stainless steel AISI 304 - Gate body with circumferential ridge and interlying struts per structural requirements. Incl. stainless steel hinges at the top, quantity per hinge receivers on frame; stainless steel locking bolts at the bottom, quantity according to number of frame locks.
Dimensions: for clear flush chamber wall opening of H × W = ______ × ______ mm

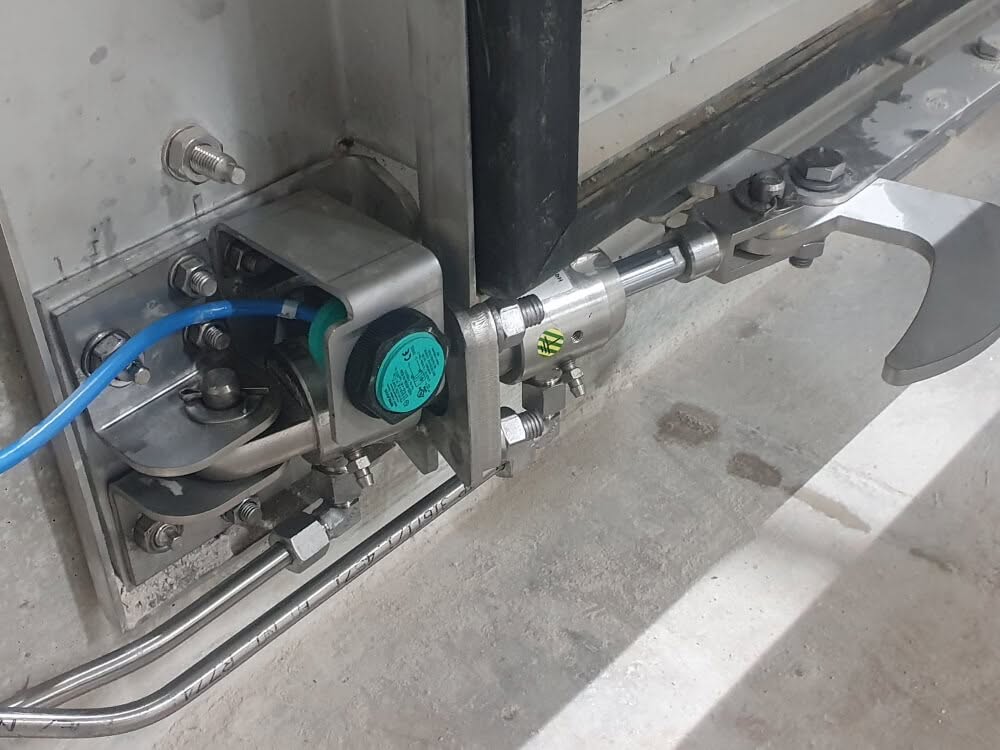

Material: Stainless steel AISI 304 - Hydraulic cylinder for the control of the locking mechanism, installed at the bottom, including hydraulic hoses, installed at the side of the frame, with connection point at the height of the gate body top.
Material: Stainless steel AISI 304 - Clip to hold proximity sensor to record flushing events and operational control.
- Mounting material consisting of all necessary stainless steel screws, dowels and other necessary incidentals.
2. Control Unit for Flush Cleaning System
For the control of a flushing event depending on flush chamber and storage chamber water levels.
Consisting of

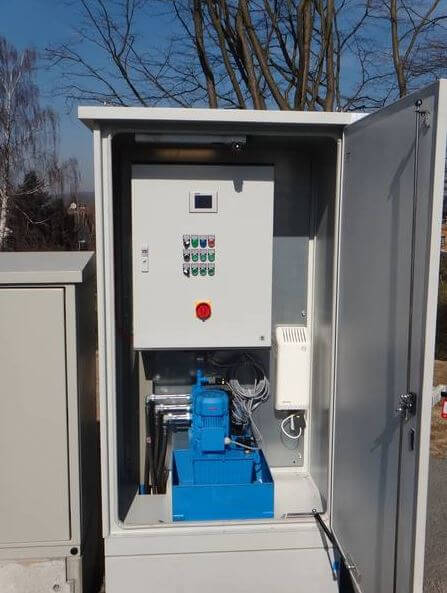

- Outdoor control cabinet for the installation inside of the control manhole or structure at the head end of the respective retention tank.
- Necessary basic hardware consisting of cabinet lighting, cabinet heater, fuse elements, circuit breaker, indicator lights „OPEN“, „CLOSE“, „ERROR“, push buttons „OPEN“, „CLOSE“, mode switch „MANUAL – OFF – AUTOMATIC“.
- Programmable control as heart of the control unit with data storage capacity; incl. control panel and display to show current value, input of set values and storage unit for data logging of water levels and number and date of flush events.
- Control software for the realization of a logical, functional flushing sequence.
- Completely pre-wired and pre-assembled for the connection to the power supply, with connections for the hydraulic unit (output), water level sensors and proximity switches (inputs).
Items
| Pos. | Description | Quantity / Unit | Unit price | Total price |
|---|---|---|---|---|
| 1. | Flush Cleaning System AquaFlush Gate – supply and installation | 1,000 pc | ____________ | ____________ |
| 2. | Control Unit for Flush Cleaning System – supply and installation | 1,000 pc | ____________ | ____________ |
Sample specification text SGS Aqua Technologies GmbH · Version 23.11.2022 · All information without guarantee.
