Specification Text AquaClean Jet Fix
Sample specification for planners and specifiers. Ready to be adopted into your bill of quantities.

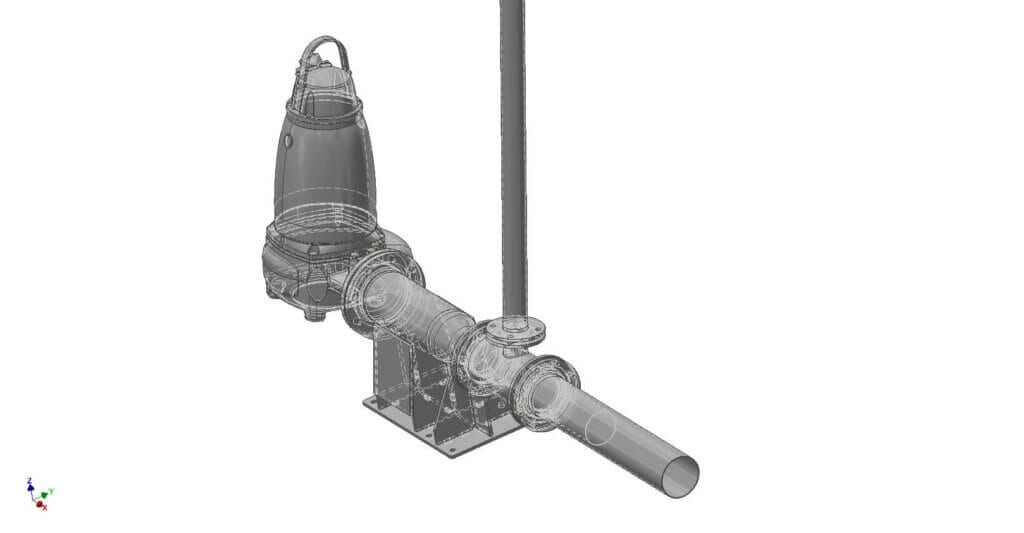

AquaClean Jet Fix – Fixed Jet
AquaClean jet for cleaning and aerating the storage sewer, to be delivered and assembled at the low point of the storage sewer. The electrical connection must be made on site by the owner.
Proof of delivery:
SGS Aqua Technologies GmbH
Burmeckestraße 4–6, D-59955 Winterberg
Tel.: +49 2983 974268-0
Fax: +49 2983 974268-68
Requirements and characteristics of the cleaning system
- Complete and permanent flooding of the entire construction, including the aggregates, even during operation
- Operation with static water-air jet mixture in continuous and intermittent way of working
- The machine can also be used for intensive cleaning when the bottom of the retention tank runs out of water
- Power connection of the pump unit via 3-phase alternating current
- Submersible pump with vortex impeller
- Injector mixing chamber suitable for the exchange and use of different nozzles
- Ventilation device with intake manifold and air pipe
- Injector construction in standardized system design
- Complete machine including jet pipe
- Can be dismantled into individual parts via screw connections for assembly, inspection and maintenance purposes
1. Machinery
- 1.1 Pump unit
Single-stage block unit in stationary installation for pumping untreated domestic waste water, with 20 m electrical connection cable, incl. thermal motor protection for hazardous areas as temperature controller and limiter. The pump set is designed for continuous operation (S1) in order to operate also when the jet pipe and the motor housing are not submerged. The pump is installed separated from the injector in the pump sump. The calculation must include the pressure pipe between the pump and the jet.
Execution: submersible pump · Manufacturer: ____________
Connection: standard flange · Operating mode submerged: S1 · Operating mode surfaced: S1
Start type: star delta · Power: ______ kW - 1.2 Complete jet
In a standardized system design, with replaceable nozzle.
Inlet: DN 150 · Outlet: DN 125 · Air intake pipe: DN 65 (height above water level) - 1.3 Mounting set
Welded sheet steel construction with mounting plate for mounting with push-through anchors on the statically adequately dimensioned pool floor, incl. adaptation to the local slope conditions. Dimensions and material thicknesses according to static and dynamic requirements.
Dimensions H/W/D: 1,500/500/890 mm
2. Automation
- 2.1 Sensor set
For monitoring the machine including additional temperature monitoring, provision only. The required cable work for sensors and control or regulation and the electrical connection take place on site. - 2.2 Process software
Creation, documentation and provision of a software module for establishing conformity for the AquaJet cleaning system according to the Machinery Directive, as process software for AquaClean jets, taking into account the technical machine data. The software module is implemented on site in the overall control regime of the retention basin according to the requirements of the client. Any required coordination effort between the service sections of different trades is to be included.
Functions and displays to consider in the programming
- Tank cleaning: MANUAL OPERATION / OFF / AUTOMATIC
- Tank cleaning: MALFUNCTION
- Pan STOP, acknowledge, check lamps
- Display operation, malfunction, maintenance, measured value failure
Software functions
- Obtaining an object- and state-oriented and energy-saving cleaning regime
- Continuous function and performance monitoring
- Motor control of the pump
- Temperature-controlled operation
- Parameterizable emergency behavior
- Demand-oriented post-cleaning with sufficient water supply
- Machine status control, including evaluation of performance data
- Display of fault, warning, plausibility and maintenance messages as well as derived measured variables such as performance data, temperature detection and monitoring, runtime monitoring, idle power shutdown
- Evaluation and processing
- Prepared for the exchange of process data
3. Design data
- Tank width / length: ca. ______ / ______ m
- Floor height: ______ masl
- Max. water level: ______ masl
- Ex zone: Zone 1
4. Materials
Materials for plant engineering are fundamentally to be used suitable for the specified medium and the application. All components that come into contact with the medium are, if not otherwise specified, corrosion resistant or provided with corrosion protection.
- Pump housing parts: GG-25
- Impeller: GG-25
- Jet pipe: Stainless steel, AISI 316L
- Mounting set: Stainless steel, AISI 316L
- Construction parts: Stainless steel, AISI 316L
- Pipes: Stainless steel, AISI 316L
- Manufacturer: „SGS Aqua“ · Type: „AquaClean Jet-Fix“
Item
| Pos. | Description | Quantity / Unit | Unit price | Total price |
|---|---|---|---|---|
| 01. | AquaClean Jet Fix – supply and installation | 1,000 pc | ____________ | ____________ |
Sample specification text SGS Aqua Technologies GmbH · Version 24.01.2023 · All information without guarantee.
