References

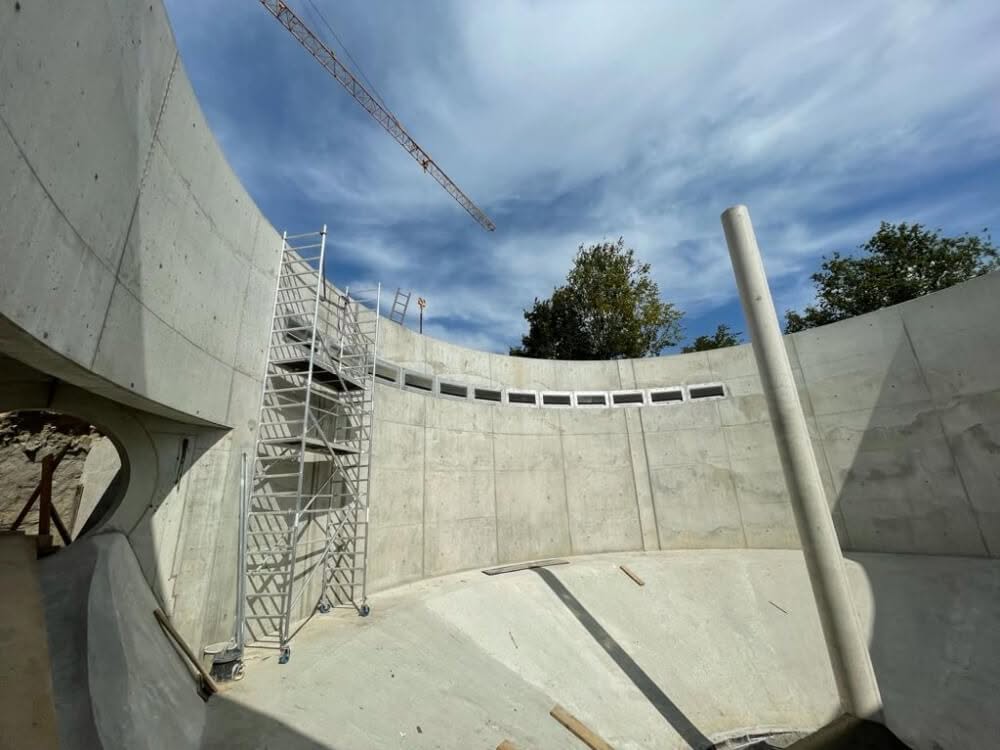

| Trade | Dimensions | Scope of services | Client / Contact person | Owner, project / Contact person | Completion |
|---|---|---|---|---|---|
| Self-regulating clarifier overflow 4 pcs | L = 2,000 mm | Production and delivery | Prowatec Luxembourg S.A. Mr Blatner | CSO Reckange | 06/2025 |
| Self-regulating clarifier overflow 4 pcs | L = 4,350 mm | Production and delivery | Godina Miroslava Krleze 4 HR-51000 Rijeka Mr Cepic | A8 RB CS3Maj Rijeka | 01/2025 |
| Self-regulating clarifier overflow 2 pcs | L = 1,750 mm | Production and delivery | GLA-WEL GmbH 49324 Melle Mr van Brackel | B14 Backnang Road Construction Authority Baden-Württemberg | 11/2024 |
| Self-regulating clarifier overflow 2 pcs | L = 3,000 mm | Production and delivery | GLA-WEL GmbH 49324 Melle Mr van Brackel | B29 Essingen Aalen Road Construction Authority Baden-Württemberg | 09/2023 |
| Self-regulating clarifier overflow 2 pcs | L = 3,000 mm | Production and delivery | Godina Miroslava Krleze 4 HR-51000 Rijeka Mr Cepic | A6 RB Kantrida Dionica Rijeka | 08/2023 |
Downloads
Specification Text Aqua-Clear Sewage Overflow
Sample specification for planners and specifiers. Ready to be adopted into your bill of quantities.
Aqua-Clear Sewage Overflow

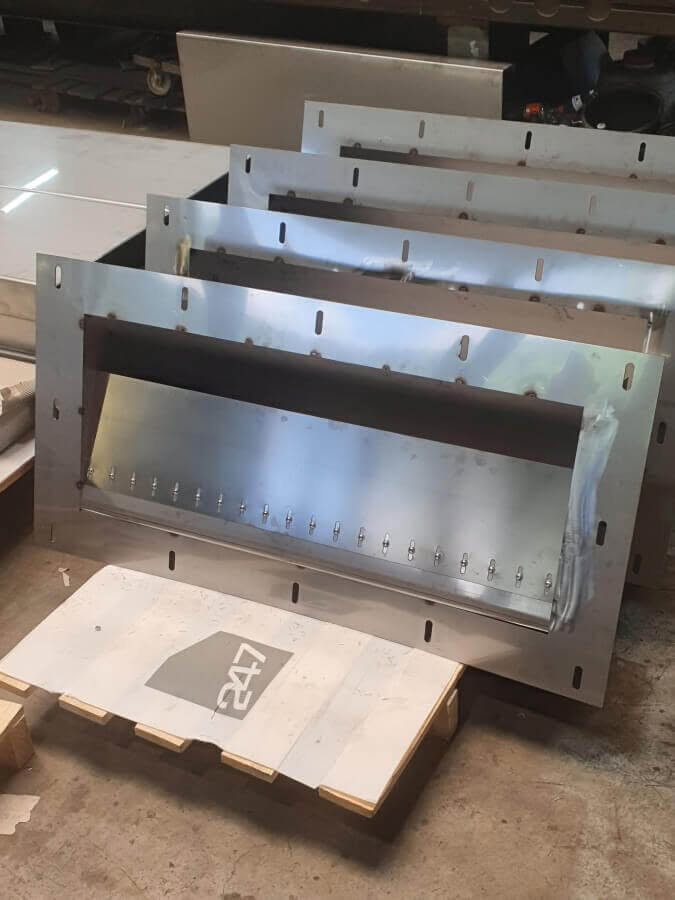

Active discharge control that works without auxiliary energy, seals and joints, in which a thin stainless steel spring plate is elastically deformed by the water pressure in such a way that, in combination with a fixed, inclined base plate, a variable control cross section keeps the discharge constant.
Manufacturer:
SGS Aqua Technologies GmbH
Burmeckestraße 4–6, D-59955 Winterberg
Tel.: +49 2983 974268-0
Fax: +49 2983 974268-68
Scope of supply

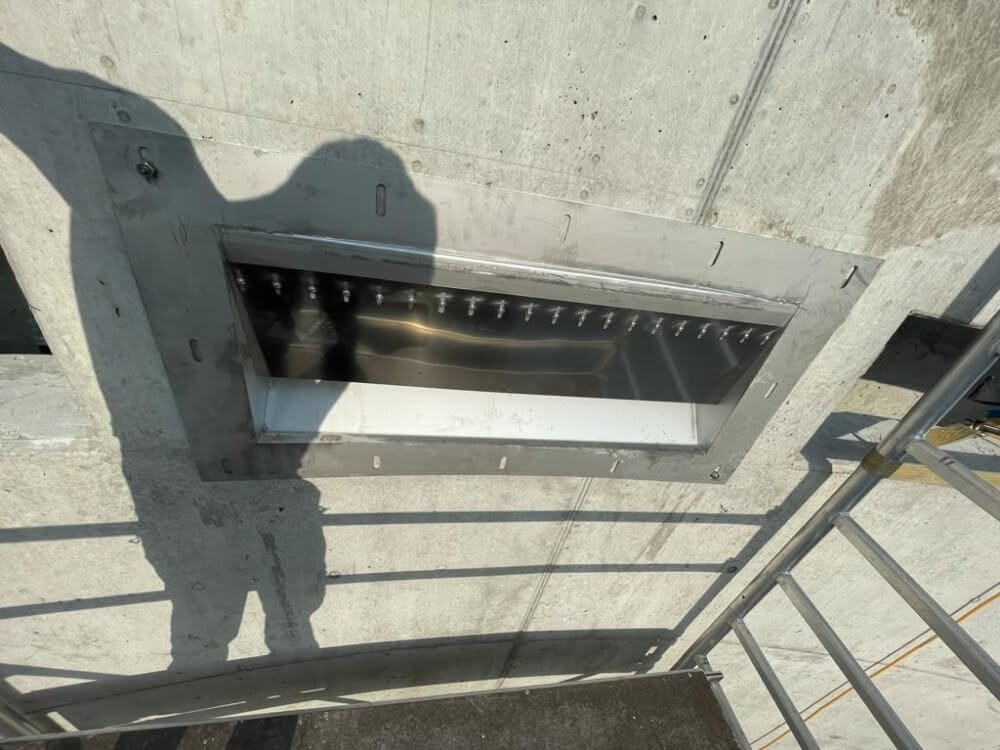

- Supply and install a compact unit for insertion into a recess prepared on site according to the manufacturer’s instructions.
- Frame construction, retaining plate and base plate made of stainless steel 1.4301
- Spring plate strips made of highly tempered, rustproof stainless steel according to factory specifications
- Fastening parts made of stainless steel
- Delivery of the ready-to-install device ex works, adjusted to the target discharge, including hydraulic dimensioning and data sheet. The reference horizon for the stated pressure level is the upper edge of the bed plate.
Design data
- Design water head hw: ______ mm
- Design flow Qf: ______ l/s
- Slot length L: ______ m
- Chosen manufacturer: SGS Aqua Technologies GmbH
Item
| Pos. | Description | Quantity / Unit | Unit price | Total price |
|---|---|---|---|---|
| 01. | Aqua-Clear sewage overflow – supply and installation | 1,000 pc | ____________ | ____________ |
Sample specification text SGS Aqua Technologies GmbH · Version 24.01.2023 · All information without guarantee.
