Advantages:
- Ideal utilisation of the existing storage volume
- Maintaining the water level target with variable flow rates
- Lightweight construction
- Optimised geometry
- Maximum efficiency
- Free of energy due to float control
- Variable stowage target possible
- Unrestricted function even in case of backwater
- Retention of floating substances
- Low maintenance, quiet and reliable
Playlist
0:13
| Reference 1: | Reference 2: | Reference 3: | |||
| Project name: | Nanhu | Project name: | Sundern | Project name: | Medebach |
| Project data: | Year of construction 2020 L = 2500 bis 4800 mm H = 1500 bis 2200 mm Number 5 piece | Project data: | Year of construction 2018 L = 1200 mm H = 1200 mm Number 1 piece | Project data: | Year of construction 2015 L = 2500 mm H = 1250 mm Number 1 piece |
| Scope of services: | Manufacture, delivery | Scope of services: | Manufacture, delivery and assembly | Scope of services: | Manufacture, delivery and assembly |
Specification Text AquaGate Float U
Sample specification for planners and specifiers. Ready to be adopted into your bill of quantities.
AquaGate Float U – Gate Weir with Floating Drive, Underflowed

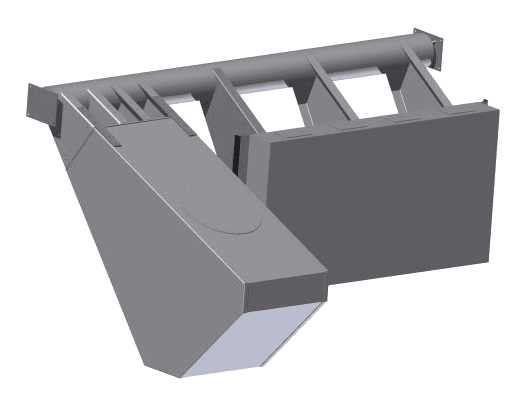

The weir gate is connected by a shaft and lever arms with a float. When the max. water level is reached, the float starts to open the gate. The gate then works proportionally with the amount of incoming water: the more water flows in, the further the gate opens. With this arrangement, the storage target is kept within a tolerance of ± 3 cm.
Manufacturer:
SGS Aqua Technologies GmbH
Burmeckestraße 4–6, D-59955 Winterberg
Tel.: +49 2983 974268-0
Fax: +49 2983 974268-68
or equivalent.
Consisting of
- Gate weir with 3-sided sealing, with 2 lateral lip seals and an underlying flat gasket.
Dimensions gate weir: H × W × D = 2,070 × 3,150 × 300 mm
Material: Stainless steel - Connecting shaft made of stainless steel to absorb all torsional forces that occur.
Length: 4,950 mm · Diameter: 300 mm - Float to generate the required opening torque upon reaching the max. water level.
Length: 1,300 mm · Height: 1,650 mm
Material: Stainless steel
Requirements for manufacture and installation
Since the weir system is an application heavily stressed by pressure and torsional forces, the assembly regarding adjustment and sealing against the building can only be carried out with appropriate experience. Only companies that can show at least 3 references with their offer are allowed to manufacture and assemble the system.
Item
| Pos. | Description | Quantity / Unit | Unit price | Total price |
|---|---|---|---|---|
| 1. | Gate weir with floating drive AquaGate Float U – supply and installation | 1,000 pc | ____________ | ____________ |
Sample specification text SGS Aqua Technologies GmbH · Version 12.12.2022 · All information without guarantee.
